Price of 3 Ton 5 M European type Low Headroom Electric Wire Rope Hoist for Sale to Oman

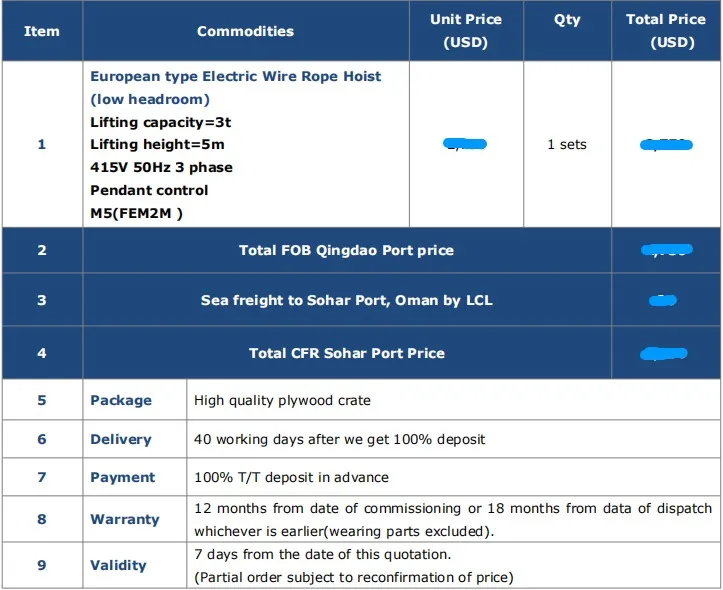

Price of 3 Ton European type Low Headroom Electric Wire Rope Hoist for Sale to Oman:

Technical Specification of 3 Ton European type Low Headroom Electric Wire Rope Hoist for Sale to Oman:

Item	European Electric wire rope hoist
Rated lifting capacity	t	3
Lifting height	m	5
Hoist traveling speed	m/min	2-20
Lifting speed		0.8/5
Working class	/	M5 (FEM2M )
Power supply	V/Hz/Ph	415/50/3
Control voltage	V	48
Hoist traveling power	KW	0.4
Hoisting power		0.45/3.2
Total power		4.05
Total Weight	kg	450
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-10℃-+40℃
Working condition	/	Indoor
Control method	/	Pendant control
Country of origin	/	China
Safety protection system	/	Phase protection system; Overload protection system; No-voltage protection system; Thermal protection system; Over-current protection system; Lifting limit protection system; Emergency stop protection system;

3 Ton 5 M European type Low Headroom Electric Wire Rope Hoist for Sale to Oman:

A material handling contractor from Oman contacted us for a compact lifting solution for an indoor assembly workshop. The project required a reliable hoist with precise control, low headroom design, and stable performance under medium-duty cycles. After technical discussions, the customer selected our 3 ton european type electric wire rope hoist with a 5-meter lifting height.

The equipment was configured to meet FEM M5 (2M) working class, ensuring durability for frequent daily operations in Oman’s industrial environment. The 3 ton european type electric wire rope hoist featured dual lifting speeds (0.8/5 m/min) for accurate positioning and efficiency. A 48V pendant control was chosen to enhance operator safety, a key requirement from the Oman client.

The customer particularly valued the complete safety protection system, including overload, phase, thermal, over-current, lifting limit, and emergency stop protection—critical for compliance with Oman workplace safety standards.

With a total power of 4.05 kW and a compact low headroom structure, the 3 ton european type electric wire rope hoist allowed maximum hook travel within the limited building height. Before shipment to Oman, the unit underwent full factory testing, load testing, and electrical inspection.

The european type electric wire rope hoist was delivered on schedule to Oman, with clear documentation and installation guidance. After commissioning, the customer reported smooth operation, low noise, and precise control.

Configuration Details of 3 Ton European type Low Headroom Electric Wire Rope Hoist for Sale to Oman:

Hoist mechanism		Inverter traveling speed and double lifting speed Reducer, drum, motors Insultation grade F Protection class IP54
Main frame		Main structure material high strength Q235B, with travelling system. Rational and compact design, Increase the hoist lifting height; make full use of the vertical space.
Lifting motor		Squirrel Cage and Frequency Conversion Hoist Motor. Protection class IP54,Insulation class F; Totally enclosed type with Splash Lubrication Electromagnetic disc type brake system Maintenance free
Travelling motor		Three-in-one motor (Motor, reducer and gearbox together as one) Maintenance free
Electric trolley		Alloy gear and wheels, 125% testing load of the rated capacity.
Winding drum		Self-produced. Drums made of high quality seamless steel processed by CNC machine.
Wire rope		Rope structure 6×36SW, steel core,
Rope guide		High strength nylon material, installed on the winding drum to guide the wire rope, Prevent constant winding of steel wire and prolong the life of the drum
Hook		Four rope wire hook forged type with safety latch
Security Monitor		Automatic monitoring recorder. Showing lifting weight, recording crane running hours. Recording crane overload times, providing protection and alarms.Recording hoisting motor starting times Providing hoisting motor over-temperature protection and alarms
Limiting stopper		For the vertical lifting stopper. Sensor is located in the drum, accurate and durable
Frequency converter		Chinese famous brand. Control the lifting and travelling motor, change the motor speed.
Electric panel		CHINT brand, Chinese famous brand
Pendant control		Button: Up and down; left and right; front and back; start and stop; emergency;Safe and reliable;



What Is 3 Ton European type Electric Wire Rope Hoist:

A 3 ton european type electric wire rope hoist is an industrial lifting device designed to safely raise, lower, and move loads up to three metric tons. Built to European FEM standards, it emphasizes compact design, high efficiency, and long service life—making it popular in modern factories, warehouses, and workshops.

Basic Design

At its core, a 3 ton european type electric wire rope hoist uses a high-strength steel wire rope wound around a precision-machined drum. A compact motor, gearbox, brake system, and control unit are integrated into a lightweight structure. Compared with traditional hoists, European designs use fewer but stronger components, reducing dead weight and improving performance.

How It Works

When powered on, the motor drives the drum through a gearbox, lifting or lowering the load smoothly via the wire rope. Advanced braking systems ensure safe stopping, even under full load. Many models support variable speed control for precise positioning.

Key Benefits

• Compact & lightweight: Saves space and allows higher hook height
• Energy efficient: Optimized motors reduce power consumption
• High safety: Reliable brakes and overload protection
• Low maintenance: Fewer wear parts and modular design

3 Ton European type Electric Wire Rope Hoist Buying Guide: Key Factors to Consider Before You Purchase

When choosing a 3 ton european type electric wire rope hoist, it’s important to evaluate key features that impact performance, safety, and long-term value.

• Load Capacity & Duty Class: Ensure the hoist is rated specifically as a 3 ton european type electric wire rope hoist with a duty class matching your usage (e.g., FEM 2M, 3M). Duty class affects how often and how hard the hoist can work.
• Compliance & Standards: Check for compliance with European FEM standards. A genuine European type Electric Wire Rope Hoist adheres to strict safety and quality requirements.
• Motor & Drive System: Look for efficient motors with Variable Frequency Drive control. Smooth acceleration and deceleration improve performance in a 3 ton european type electric wire rope hoist.
• Wire Rope & Drum Quality: High-strength wire rope and precision drum grooves reduce wear and extend service life. These elements are critical in any European type Electric Wire Rope Hoist.
• Safety Features: Overload protection, emergency stop, upper/lower limit switches, and thermal protection are must-have safety components on a 3 ton european type electric wire rope hoist.
• Installation & Maintenance: Choose a design that allows easier installation and routine maintenance to lower downtime and cost.
• Warranty & Support: Verify warranty terms and local service support for the 3 ton european type electric wire rope hoist to ensure dependable long-term operation.

Essential Safety Features of a 3 Ton European type Electric Wire Rope Hoist:

A European type Electric Wire Rope Hoist is designed with advanced safety systems to meet strict European standards and ensure reliable lifting operations.

• Overload Protection: A built-in overload limiter prevents lifting beyond rated capacity. This protects the structure, wire rope, and motor of a 3 ton european type electric wire rope hoist.
• Fail-Safe Electromagnetic Brake: Automatically engages during power loss, holding the load securely in position. This is a critical safety component in every European type Electric Wire Rope Hoist.
• Upper & Lower Limit Switches: Limit switches stop hook travel at preset points, preventing over-winding or over-lowering of the wire rope in a 3 ton european type electric wire rope hoist.
• Thermal Motor Protection: Thermal sensors shut down the motor if overheating occurs, extending motor life and maintaining safe operation of the 3 ton european type electric wire rope hoist.
• High-Strength Wire Rope & Drum Design: Optimized drum grooves ensure even rope winding, reducing slippage and fatigue in a European type Electric Wire Rope Hoist.
• Emergency Stop System: Instant shutdown during abnormal conditions improves operator safety and equipment protection.
• Low-Voltage Control System: Enhances operator safety by reducing electrical risk during operation of a 3 ton european type electric wire rope hoist.

Low Headroom 3 Ton European type Electric Wire Rope Hoist: Maximizing Lifting Height in Space-Constrained Facilities

A European type Electric Wire Rope Hoist with low headroom design is engineered to deliver maximum hook travel where vertical space is limited. Below are the key points explaining how it achieves this advantage.

What Low Headroom Means

Low headroom refers to a compact hoist layout that minimizes the distance between the crane rail and the hook. A low headroom 3 ton european type electric wire rope hoist allows higher lifting height without modifying the building structure.

Optimized Structural Design

• Compact motor and gearbox arrangement
• Short drum and reduced hook approach
• Integrated trolley design

  These features enable a 3 ton european type electric wire rope hoist to operate efficiently in tight spaces.

Maximized Lifting Height

By reducing overall hoist height, a low headroom 3 ton european type electric wire rope hoist increases usable lifting range, improving material handling flexibility inside workshops and warehouses.

Performance & Safety Benefits

• Smooth, precise lifting with VFD control
• Stable load positioning
• Full compliance with European safety standards

  These benefits ensure a 3 ton european type electric wire rope hoist delivers both efficiency and safety.

Application of 3 Ton European type Electric Wire Rope Hoist in Oman:

Economic Background: Oman is investing heavily in ports, logistics, manufacturing, and infrastructure. This stable economic growth environment increases demand for efficient lifting solutions. Focus on productivity and safety creates ideal conditions for adopting advanced hoisting equipment.

1. Industrial Manufacturing Use: The 3 ton european type electric wire rope hoist is widely applied in Oman’s light and medium manufacturing sectors. The European type Electric Wire Rope Hoist meets need for reliable workshop material handling.
2. Port and Logistics Sector: Oman’s ports and free zones require efficient cargo handling. The 3 ton european type electric wire rope hoist supports frequent lifting operations with high duty cycles.
3. Oil, Gas, and Energy Projects: Although Oman is diversifying, oil and gas remain vital. The 3 ton european type electric wire rope hoist is used for equipment installation, maintenance, and component lifting.
4. Construction and Infrastructure: Oman’s ongoing infrastructure expansion increases demand for safe lifting systems. The 3 ton european type electric wire rope hoist is applied for prefabricated components, MEP installation, and maintenance lifting tasks.
5. Economic Advantages: In Oman, buyers emphasize lifecycle cost rather than low upfront price. The 3 ton european type electric wire rope hoist offers energy efficiency, long service life, and reduced maintenance.

Package and Delivery of European type Low Headroom Electric Wire Rope Hoist:



Electric Hoist Certifications:
