Price of 5 Ton H-9 M Electric Wire Rope Hoist for Sale to South Africa

Lifting Capacity: 5 ton
Span: m
Lifting Height: 9 m
Working Class: M3
Note: We can design and manufacture the crane according your requirments and working conditions.

Get Price

Send Email

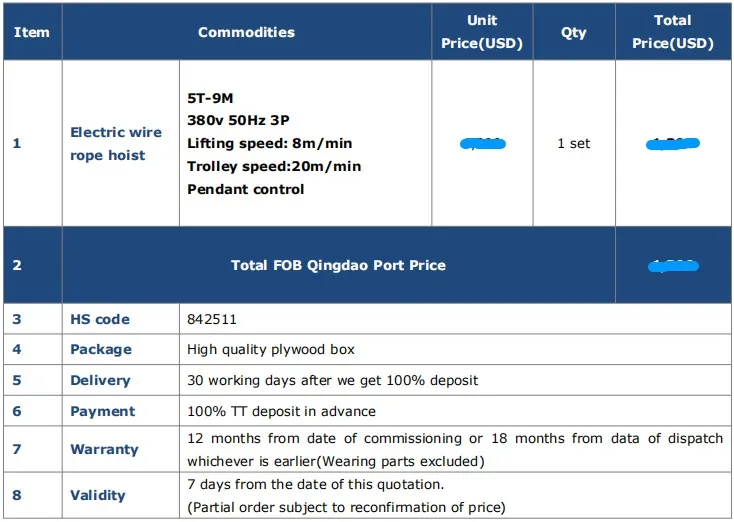

Price of 5 Ton H-9 M Electric Wire Rope Hoist for Sale to South Africa:

Technical Specifications of 5 Ton 9 M Electric Wire Rope Hoist For Sale to South Africa:

5 Ton H-4.8 M Electric Wire Rope Hoist for Sale to South Africa:

A manufacturing client from South Africa contacted us seeking a 5 ton electric wire rope hoist for their new steel-processing workshop. Their workflow required frequent material lifting between cutting, welding, and assembly stations, with each shift operating close to 10 hours per day.

Understanding the Client’s Real Needs
The engineering manager explained that their existing hoist equipment suffered from overheating and unstable control performance. To support their expanding production line, they needed a 5 ton electric wire rope hoist with a lifting height of 9 m, pendant control, and durable electrical components able to handle continuous duty cycles. Since the company in South Africa works both indoors and outdoors, they required IP54 protection, F-class insulation, and reliable safety systems.

Technical Solution Provided
Based on their application scenario, we recommended the H-9 m model 5 ton electric wire rope hoist.

The client in South Africa appreciated that this 5 ton electric wire rope hoist could support both indoor and outdoor working conditions at temperatures from –20°C to +40°C, perfectly matching the climate conditions commonly found in South Africa.

Packaging, Delivery & After-Sales Terms
We prepared a detailed quotation including:

• Total FOB Qingdao price
• High-quality plywood box packaging for sea transport safety
• 30 working days delivery after full deposit
• 12-month commissioning warranty / 18-month dispatch warranty (excluding wearing parts)
• 7-day price validity

The buyer in South Africa confirmed the order within three days.

Shipment & Customer Feedback
The 5 ton electric wire rope hoist was shipped on schedule. After installation, the client in South Africa reported that the hoist’s smooth 8 m/min lifting speed and stable traveling system significantly improved material flow efficiency. Their maintenance team also praised the safety protection system, noting fewer operational stoppages compared to previous equipment.

Main Parts and Description of 5 Ton 9 M Electric Wire Rope Hoist For Sale to South Africa:

Motor		Special designed Squirrel-cage motor for the electric hoist. Protection grade IP54, Insulation class F.
Electric trolley		Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details.
Hoist lifting reducer		Totally enclosed type with Splash Lubrication, gear box shell pressure casting
Drum		Self produced. Drums made of high quality seamless steel processed by CNC machine. Rope guide made of engineering plastic, light weight, excellent wear resistance, reducing tear and wear of wire rope
Wire rope		High strength, Strength of extension: 1670 N/m2, Size: 6*37+FC 1670. excellent security
Hook		Drop Forged, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath
Electrics		Chint brand, Famous electric brand in China
Overload limiter		For lifting protection, Monitor the crane working situation
Lifting limit switch		For lifting protection, prevent the hook from knocking the hoist
Pendant control		Button: Up and down; left and right; front and back; start and stop; emergency;

Certification of Electric Wire Rope Hoist:

Processing of Electric Wire Rope Hoists:

Packaging and Delivery of Electric Wire Rope Hoist:

Application of 5 ton electric wire rope hoist in South Africa:

1. Logistics, Warehousing, and Ports: In South Africa, the logistics sector is one of the strongest contributors to GDP. A 5 ton electric wire rope hoist is widely used for pallet handling, machinery loading, and container component lifting, helping companies maintain efficiency during periods of fluctuating transport demand.
2. Mining and Mineral Processing: Mining remains a core industry in South Africa, and the 5 ton electric wire rope hoist is essential for lifting equipment, tools, spare parts, and medium-weight components in processing plants. Its durability supports operations in gold, platinum, and manganese facilities.
3. Manufacturing and Engineering Workshops: As South Africa strengthens its manufacturing output, a 5 ton electric wire rope hoist helps factories handle steel plates, mechanical components, pumps, and fabrication materials.
4. Construction and Infrastructure Renewal: With ongoing upgrades to public utilities, power stations, and commercial buildings in South Africa, the 5 ton electric wire rope hoist supports lifting tasks such as beams, formwork, generators, and HVAC units.
5. Automotive and Heavy Equipment Service: South Africa is a major automotive hub. A 5 ton electric wire rope hoist is commonly used for engine lifting, chassis handling, and equipment assembly, ensuring safe and precise operations in workshops.
