Price of 5 Ton 8.55M H-5.85M European-style Single Girder Gantry Crane for Sale to Indonesia

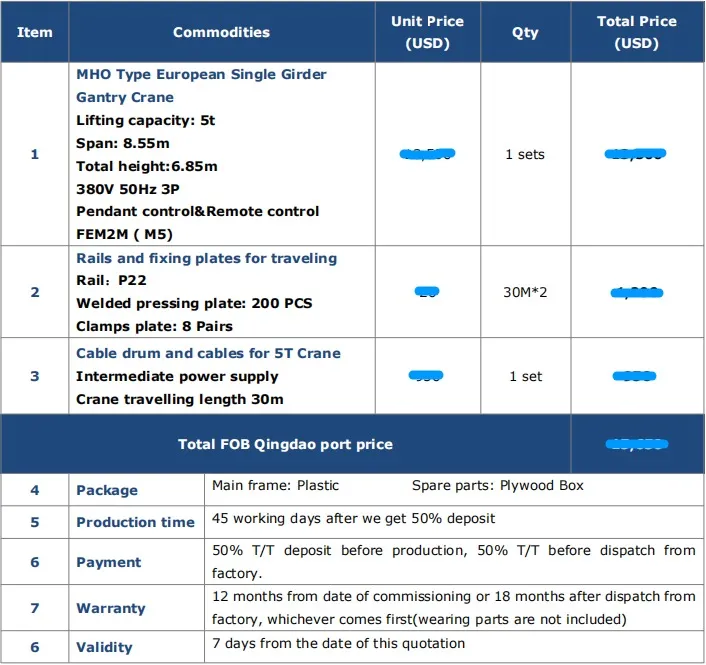

Price of 5 Ton European-style Single Girder Gantry Crane:

Technical Specification of 5 Ton European-style Single Girder Gantry Crane:

Item		MHO Type European Single Girder Gantry Crane
Lifting capacity		t	5
Total height		m	6.85
lifting height			5.85
Span		m	8.55
Speed	Crane traveling speed	m/min	2-20
	Trolley traveling speed		2-20
	Lifting speed		0.8-5
Power	Crane traveling power	kw	0.75*2
	Trolley traveling power		0.45
	Lifting power		4.9
Total power		kw	6.85
Power supply		V/Hz/Phase	380V/50HZ/3 phase
Max wheel load		KN	50.5
Rail Type		/	P22
Lifting mechanism		/	European model electric hoist
Control		/	Pendant control&Remote control
Working duty		/	M5 (FEM 2M)
Protection class		/	IP54
Insulation class		/	F class
Working temperature		/	-10℃ ~ +40℃
Hook type		/	Swiveling “C” Type with Latch
Steel Material		/	Q235B
Country of origin		/	China

Design Drawing of 5 Ton European-style Single Girder Gantry Crane:

5 Ton 8.55M H-5.85M European-style Single Girder Gantry Crane for Sale to Indonesia:

We successfully completed the delivery of a 5 ton European-style single girder gantry crane to a manufacturing plant in Indonesia, marking another milestone in our expansion across Southeast Asia. The Indonesian client, a well-known machinery parts producer located in Surabaya, required an advanced and efficient lifting solution for handling heavy components during their production and maintenance processes.

Customer Requirements:

The client initially contacted us through our official website, expressing the need for a 5 ton European-style single girder gantry crane with a span of 8.55 meters and a lifting height of 5.85 meters. They wanted a system that combined high precision, safety, and energy efficiency to support both indoor and outdoor material handling. Since their workshop space was limited, they requested a compact gantry design that ensured smooth operation without compromising lifting capacity.

After detailed communication, our engineering team recommended the MHO Type European-style single girder gantry crane equipped with a variable frequency drive system.

The European-style design ensures low noise, precise control, and a lightweight structure compared to traditional models. These advantages perfectly met the client’s need for smooth, efficient, and safe operations.

Production and Quality Assurance:

Our production team strictly followed European standards in material selection and manufacturing processes. All structural parts of the 5 ton European-style single girder gantry crane were made of high-strength Q235B steel. Before shipment to Indonesia, the entire system was preassembled and tested to verify alignment accuracy, lifting performance, and safety systems.

Delivery and Installation in Indonesia:

After quality inspection, the 5 ton gantry crane was packed in reinforced wooden cases and shipped from Qingdao Port to Tanjung Perak Port in Indonesia. Our after-sales engineers provided online installation guidance and assisted the customer in commissioning the 5 ton gantry crane. The whole installation was completed in just three days, ensuring a quick start of production.

Configuration Details of 5 Ton European-style Single Girder Gantry Crane:

Main structure		Main girder	Welded beam, mainly uses strong Q235B carbon structural steel material, easy to maintain. Three-layer paint
		Legs	Q235B carbon structural steel material, box structure design, high safety and rigidity, easy to maintain Three-layer paint
Lifting mechanism		Low headroom hoist	Inverter travel and lifting speed Reducer, drum, motors Insulation grade F Protection class IP54
		Lifting motor	Small starting current, large soft starting torque, good acceleration performance, long service life, low noise design.
		Travelling motor	SZW brand, squirrel cage hoist travel motor with frequency conversion. Protection class IP54
		Trolley wheel	Alloy gear and wheels, test load of 125% of rated capacity.
		Drum	Own production. High-quality seamless steel drums processed by CNC machine.
		Wire rope	6×36SW cable structure, steel core.
		Rope guide	High-strength nylon material, installed on the winding drum to guide the metal cable. Prevents constant winding of the steel cable and extends the service life of the drum.
		Hook	Forged swivel type with safety latch
		Bearing	Luoyang brand, famous Chinese brand. High rotation precision and durability
Crane travelling mechanism		End carriages	Provides horizontal movement for the crane, with high-quality wheels, powerful 3-in-1 motors, travel limiter, and stops.
		Wheels	Installed on the end carriages of the crane as drive wheels, made of high-carbon steel. Vacuum casting by our group, intermediate tempering by superior technical machinery, anti-rust paint.
		Crane travel motor	Specially designed squirrel cage motor for electric hoist. Maintenance-free. Insulation class F. Protection class IP54. Electromagnetic disc brake system
Protection system		Overload limit	Displays the lifting weight and records the crane's operating hours. Records crane overload times, providing protection and alarms. Records lifting motor start times. Provides alarms and protection against lifting motor overheating.
		Traveling Limit switches	For long travel, protect the crane before it collides with the object
		Lifting limiter	For lifting protection, prevent the hook from hitting the hoist
		Buffers	Used for anti-collision
Electric parts		Electric Cabinet	CHINT brand, the best Chinese brand, Main contactors are DELIXI
		Frequency converter	Easy to connect during installation
		Pendant control	Brand: Inovance, a famous Chinese brand. Controls the lift and travel motor, changes the motor speed.
		Remote control	Radio frequency control Safe and reliable
		Festoon cable	C-track festoon cable to supply power to the trolley and hoist. Safe, reliable, and flexible.

Why Choose 5 Ton European-style Single Girder Gantry Crane:

1. Advanced Design and Compact Structure: The 5 ton European-style single girder gantry crane adopts a compact design with lightweight components and optimized structure. This design reduces the wheel pressure and overall height, making it suitable for factories with limited space.
2. High Efficiency and Smooth Operation: Equipped with advanced motors and frequency control technology, the 5 ton European-style single girder gantry crane offers stable lifting performance and precise positioning. The crane’s smooth start and stop minimize load swing, improving work efficiency and safety during lifting operations.
3. Superior Safety and Reliability: Safety is a core advantage of the 5 ton European-style single girder gantry crane. It includes overload protection, limit switches, emergency stop, and anti-collision devices to ensure safe operation.
4. Low Maintenance and Long Service Life: The 5 ton European-style single girder gantry crane uses maintenance-free components such as sealed bearings and advanced lubrication systems. This reduces downtime and maintenance costs significantly.
5. Wide Range of Applications: The 5 ton European-style single girder gantry crane is widely used in factories, warehouses, workshops, and construction sites. Its flexibility makes it ideal for indoor and outdoor lifting tasks.

Modular 5 Ton European-style Single Girder Gantry Crane – Easy to Install:

• Modular Design for Quick Assembly: The 5 ton European-style single girder gantry crane features a modular structure that allows for quick and efficient installation. Each component, including the main girder, end beams, and hoisting mechanism, is pre-engineered for easy connection.
• Compact and Lightweight Structure: With a compact European-style design, the 5 ton European-style single girder gantry crane is lightweight yet durable. Its reduced self-weight lowers foundation pressure and simplifies installation requirements. The streamlined structure also makes it easier to transport and assemble, even in confined workshop areas.
• Pre-Wired and Pre-Configured Components: The 5 ton European-style single girder gantry crane comes with pre-wired electrical systems and factory-tested connections. This plug-and-play feature minimizes wiring complexity and installation errors, ensuring fast commissioning and reliable performance once the crane is set up.
• Minimal Maintenance and High Efficiency: The 5 ton European-style single girder gantry crane is built with maintenance-free components, including sealed bearings and durable gearboxes. Its European-standard motors and frequency control system ensure smooth, energy-efficient operation, reducing downtime and maintenance costs over time.

Safe & Reliable 5 Ton European-style Single Girder Gantry Crane:

1. Designed for Maximum Safety: The 5 ton European-style single girder gantry crane is built with advanced safety systems to ensure secure and stable lifting operations. It includes overload protection, emergency stop buttons, limit switches, and anti-collision sensors that prevent accidents during operation.
2. High-Quality Materials and Structure: Manufactured using premium steel and precision welding technology, the 5 ton single girder gantry crane offers excellent durability and structural stability. The rigid frame design minimizes vibration and deformation during heavy lifting, ensuring a long service life and consistent performance under demanding conditions.
3. Reliable Electrical and Control Systems: Equipped with European-standard electrical components, the 5 ton European-style gantry crane ensures smooth operation and precise control. The frequency converter allows for variable speed adjustments, providing safe and accurate load handling.
4. Low Maintenance, High Performance: The 5 ton gantry crane is designed for low maintenance with sealed gearboxes, self-lubricating bearings, and high-efficiency motors. These features reduce mechanical wear, minimize downtime, and guarantee reliable performance over long-term use.

Customizable 5 Ton European-style Single Girder Gantry Crane Solution:

1. Tailored to Your Lifting Needs: The 5 ton European-style single girder gantry crane can be fully customized to meet specific operational requirements. From span length and lifting height to speed and control mode, every detail can be adjusted to suit your workspace.
2. Flexible Design Options: The modular structure of the 5 ton European-style single girder gantry crane enables easy customization without compromising strength or performance. Users can choose between indoor and outdoor configurations, fixed or movable types, and single or dual-speed systems, ensuring the crane fits seamlessly into existing production layouts.
3. Adaptable Power and Control Systems: The 5 ton European-style single girder gantry crane can be equipped with various power sources, including cable reels or busbar systems. Control options include pendant control, wireless remote, or cabin operation. These customizable features enhance safety and operator convenience for diverse working environments.
4. Enhanced Features for Special Applications: For industries handling specific materials or environments, the 5 ton European-style single girder gantry crane can include explosion-proof motors, corrosion-resistant coatings, or weatherproof protection. Such tailored enhancements improve performance in harsh or specialized conditions.

Processing of 5 Ton European-style Gantry Crane:

Packaging and Delivery of 5 Ton European-style Gantry Crane:

Certifications of 5 Ton Gantry Crane:

Application of 5 Ton European-Style Single Girder Gantry Crane in Indonesia:

1. Adaptation to Indonesia’s Industrial Growth: The 5 ton European-style single girder gantry crane perfectly meets the lifting needs of small to medium-sized factories, assembly workshops, and logistics centers across Indonesia*, supporting efficient material handling under limited space conditions.
2. Support for Infrastructure and Port Development in Indonesia: The 5 ton European-style single girder gantry crane is ideal for lifting steel structures, concrete blocks, and mechanical parts in construction sites and shipyards. In ports and container yards, this 5 ton gantry crane type enhances cargo transfer efficiency
3. Energy and Mining Sector Utilization: Indonesia is rich in natural resources such as coal, nickel, and palm oil. In mining and energy equipment maintenance bases, the 5 ton European-style single girder gantry crane provides stable lifting solutions for machinery assembly, repair, and transportation.
4. Contribution to Manufacturing Modernization: With the rise of automation in Indonesia’s manufacturing sector, the 5 ton European-style single girder gantry crane supports automated production lines and warehouse systems. It can be equipped with intelligent control systems, variable-frequency drives, and wireless remotes.
5. Economic Efficiency and Sustainability: The 5 ton European-style single girder gantry crane offers an excellent balance of performance and cost. Its modular structure reduces maintenance costs and downtime, providing long-term value to Indonesia’s enterprises focused on sustainable growth.
