Price of 0.5 Ton(500kg)-2.42M Adjustable Height 2.42-3.6M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to United States

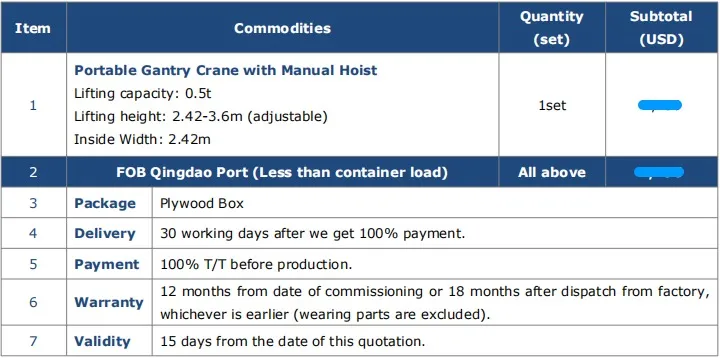

Price of 0.5 Ton(500kg)-2.42M Adjustable Height 2.42-3.6M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to United States:

Technical Specifications of 0.5 Ton(500kg) Adjustable Height Mobile Portable Gantry Crane for Sale to United States:

Item	Portable Gantry Crane
Lifting capacity	t	0.5
Lifting height	m	2.42-3.6
Inside width		2.42
Lifting speed	m/min	Manpower
Cross travelling speed		Manpower
Crane traveling speed		Manpower
Total design weight	t	0.6
Working class	/	A3
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-20℃ ~ +40℃

0.5 Ton (500kg) Adjustable Height Mobile Portable Gantry Crane for Sale to the United States:

A small equipment maintenance contractor in the United States contacted us while upgrading its internal material handling workflow. The company mainly serves light manufacturing plants and HVAC service workshops across several states in the United States, where flexibility and fast deployment are critical. After evaluating overhead lifting limitations at customer sites, the buyer decided to introduce a 0.5 ton mobile portable gantry crane as a mobile lifting solution.

The selected 0.5 ton portable gantry crane features a 2.42 m inside width and an adjustable lifting height ranging from 2.42 m to 3.6 m, allowing the team to handle motors, pumps, and fabricated components inside low-clearance workshops common in the United States. The crane is equipped with a manual chain hoist, enabling manpower-driven lifting, cross travel, and crane movement—ideal for sites without fixed power supply.

During the buyer’s daily workflow, technicians transport the 0.5 ton portable gantry crane in a service truck, assemble it on-site within minutes, and position it directly above the load. This workflow significantly reduces reliance on forklifts, which are often restricted indoors in the United States due to safety policies. The A3 working class design supports frequent light-duty operations, while the IP54 protection ensures reliability under varying site conditions.

From a commercial standpoint, the project was delivered FOB Qingdao Port as a less-than-container-load shipment, packed securely in a plywood box. Delivery was completed within 30 working days after full payment.

After commissioning, the 0.5 ton mobile portable gantry crane became a standard tool in the contractor’s service workflow across the United States, improving lifting safety, reducing labor strain, and increasing job turnaround efficiency. Backed by a 12-month warranty from commissioning (or 18 months from dispatch).

Details Conficuraciones of 0.5 Ton(500kg) Adjustable Height Mobile Portable Gantry Crane for Sale to United States:

Structure		Gantry crane adopts international profile and steel plate adopts laser cutting with smooth incision. All detachable design to enable convenient transportation and simple installation. High-strength 8.8 grade bolts are used to connect flange butt joints. One layer of epoxy zinc rich primer, two layers of acrylic polyurethane topcoat, with a film thickness of 80-120 microns.
Wheel		Manuel wheel comes with brake.
Chain block		Double pawls supporting fail-safe brake mechanism for secure operations. Wet friction discs with longer life. Unique chain guide.
Shell		Heat treated steel side plates, gears and shafts for enhanced strength.
Chain		Quenched and tempered high tensile alloy steel chain and hook.
Hook		Forged upper and bottom hooks with forged steel safety latches. It is hot forging with perfect strength that is hard to break.
Trolley		Manual chain trolley High-strength alloy steel structure.

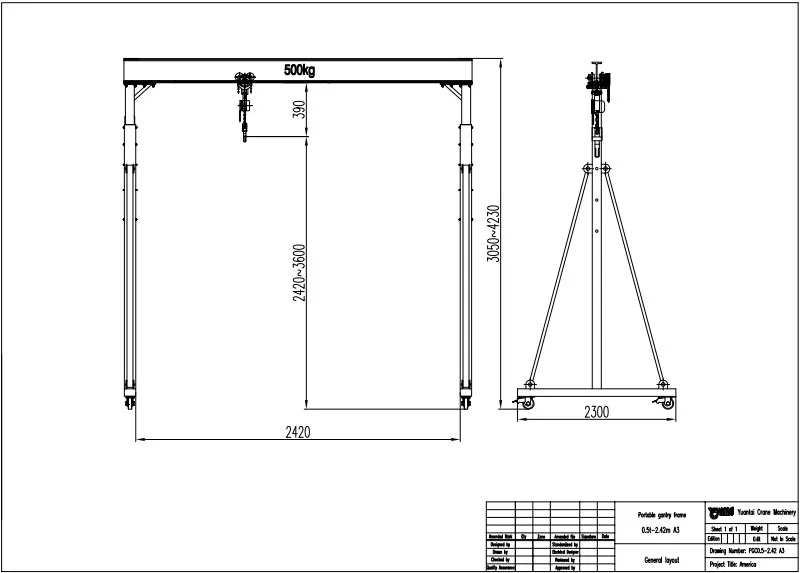

Drawing of a 0.5 Ton Portable Mobile Gantry Crane with Manual Chain Hoist:

Gantry Crane Certifications:

What is a Manual Chain Hoist and How Does it Work with a 0.5 Ton(500kg) Mobile Portable Gantry Crane:

A manual chain hoist is a compact, hand-operated lifting device designed to raise and lower loads using human force rather than electricity. When paired with a 0.5 ton portable gantry crane, it becomes a highly economical and flexible lifting solution for light-duty material handling.

What Is a Manual Chain Hoist

A manual chain hoist uses a hand chain to drive an internal gear system that multiplies pulling force. This mechanism allows an operator to safely lift loads up to 500 kg with minimal effort. Because it does not require power, a manual chain hoist is reliable, low-maintenance, and ideal for locations where electricity is unavailable or unstable.

How It Works with a 0.5 Ton Portable Gantry Crane

When mounted on the beam of a 0.5 ton mobile portable gantry crane, the manual chain hoist acts as the primary lifting unit. The gantry frame supports the load vertically, while the hoist provides controlled lifting and lowering. The wheels of the 0.5 ton portable gantry crane allow the suspended load to be moved horizontally across workshops or job sites.

Why This Combination Is Popular

• Cost-effective lifting without electrical systems
• Easy assembly and disassembly
• High safety for maintenance, repair, and small workshops
• Suitable for warehouses, fabrication shops, and on-site installation

What Does Adjustable Height Mean for a 0.5 Ton Mobile Portable Gantry Crane and Why is it Important:

For a 0.5 ton mobile portable gantry crane, adjustable height means the clear lifting height of the gantry can be changed by repositioning the upright legs or crossbeam at different preset levels. This design allows one 0.5 ton mobile portable gantry crane to adapt to multiple lifting scenarios instead of being fixed at a single height.

What Adjustable Height Means in Practice

An adjustable-height 0.5 ton portable gantry crane typically uses telescopic legs or bolt-hole settings. By raising or lowering the beam, operators can match the crane height to different loads, workbenches, machines, or vehicles. The manual chain hoist is then mounted on the beam, providing precise vertical lifting within the selected height range.

Why Adjustable Height Is Important

1. Greater flexibility – One 0.5 ton mobile portable gantry crane can serve multiple workstations, reducing the need for extra equipment.
2. Improved safety – Proper height adjustment minimizes side loading on the hoist and improves load stability on the 0.5 ton portable gantry crane.
3. Easier handling of different loads – Tall equipment, pallets, or assemblies can be lifted efficiently by setting the 0.5 ton mobile portable gantry crane to the optimal height.
4. Space efficiency – In workshops with low ceilings or tight layouts, the adjustable design allows the 0.5 ton portable gantry crane to operate without clearance issues.

 How to Determine the Right Capacity for Your Portable Gantry Crane:

• Identify the Maximum Load Weight: Start by calculating the heaviest item you will lift, including tooling, fixtures, and rigging. If your loads are consistently under 500 kg, a 0.5 ton portable gantry crane is often the most economical and practical option for light-duty applications.
• Add a Safety Margin: Industry best practice recommends adding a safety margin to account for dynamic forces and uneven loading. For example, if your maximum load is around 400 kg, choosing a 0.5 ton mobile portable gantry crane provides sufficient reserve capacity without oversizing the equipment.
• Consider How Often You Lift: Frequent daily lifts may require a higher working class, while occasional maintenance tasks are well suited to a 0.5 ton portable gantry crane. Matching capacity to usage helps extend service life and reduce wear.
• Evaluate Workspace and Mobility Needs: Smaller workshops, warehouses, and service areas often benefit from the compact design of a 0.5 ton portable gantry crane. Its mobility allows loads to be moved safely without permanent installations.

Space and Floor Requirements for Setting Up a 0.5 Ton Portable Gantry Crane:

• Floor Space Requirements: A 0.5 ton portable gantry crane requires enough horizontal clearance to accommodate its span, leg width, and travel path. You should allow extra space on both sides of the frame so the crane can move freely without obstructions. In most workshops, a clear rectangular area slightly larger than the overall footprint of the portable gantry crane is recommended for smooth operation.
• Ceiling and Vertical Clearance: Although compact, a 0.5 ton mobile portable gantry crane still needs sufficient overhead clearance. This includes the gantry height, the manual chain hoist, and the lifted load. Adjustable-height designs are especially useful where ceiling height is limited, allowing the portable gantry crane to adapt to different work environments.
• Floor Strength and Surface Conditions: The floor must be flat, level, and strong enough to support the combined weight of the 0.5 ton portable gantry crane and the rated load. Concrete floors in warehouses or workshops are ideal. Uneven or soft surfaces can affect wheel movement and reduce stability.
• Mobility and Access Paths: One advantage of a 0.5 ton portable gantry crane is mobility. Ensure aisles and doorways are wide enough so the 0.5 ton portable gantry crane can be repositioned easily between workstations without dismantling.

Application of 0.5 Ton (500kg) Mobile Portable Gantry Crane in the United States:

1. Cost-Sensitive Small Businesses: In the United States, many small workshops and service companies face high labor and equipment costs. A 0.5 ton portable gantry crane offers an economical lifting solution without the expense of permanent overhead systems.
2. Flexible Use in Decentralized Facilities: The United States has a large number of decentralized warehouses, repair shops, and rental facilities. A 0.5 ton portable gantry crane with adjustable height adapts easily to different ceiling clearances.
3. Support for Maintenance and Repair Services: Equipment maintenance is a major sector in the United States economy. A 0.5 ton portable gantry crane enables safe lifting of motors, pumps, and tooling during on-site service work, improving efficiency for mobile teams.
4. Manual Operation Reduces Energy Dependence: Rising energy costs in the United States drive demand for non-powered solutions. The manual chain hoist design allows a 0.5 ton portable gantry crane to operate without electricity.
5. Compliance with Workplace Safety Trends: Strict safety regulations in the United States push companies to reduce manual handling risks. Using a 0.5 ton portable gantry crane helps meet safety expectations while maintaining productivity.
