Price of 5 Ton H-18 M Electric Wire Rope Hoist For Sale to Nigeria

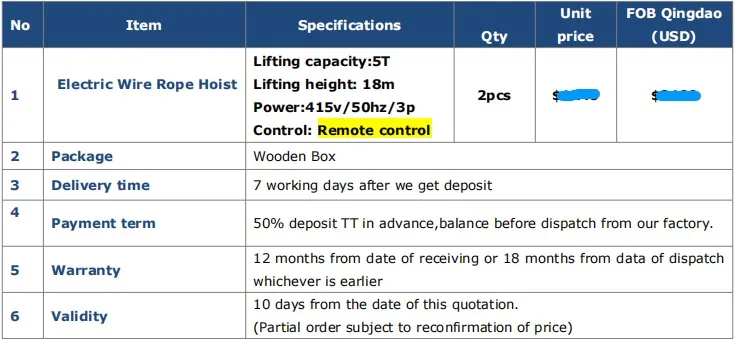

Price of 5 Ton H-18 M Electric Wire Rope Hoist For Sale to Nigeria:

Technical Specifications of 5 Ton 18 M Electric Wire Rope Hoist For Sale to Nigeria:

Number	Electric Wire Rope Hoist
Lifting capacity	5T
Lifting height	18m
Power	415v/50hz/3p
Traveling Speed	20m/min
Lifting speed	8m/min
Traveling power	0.8kw
Lifting power	7.5kw
Lifting motor rotation speed	1400r/min
Working class	M3
Protection class	IP54
Insulation grade	F
Control	Remote control
Recommended Track width	25-50b
Ambient temperature	-20 degree to +40 degree
Country of origin	China

5 Ton H-18 M Electric Wire Rope Hoist for Sale to Nigeria:

A manufacturing company in Nigeria specializing in steel fabrication recently completed a facility upgrade and urgently required a reliable lifting solution to improve raw-material handling. Their workflow involves unloading steel plates from trucks, transferring semi-finished components between workstations, and lifting finished parts for final inspection. Because the plant operates multiple shifts, the purchasing manager specifically looked for a 5 ton electric wire rope hoist with stable lifting speed, long service life, and easy remote-control operation.

After reviewing the technical parameters, the customer confirmed that the 5 ton electric wire rope hoist with an 18-meter lifting height, 8 m/min lifting speed, 20 m/min traveling speed, and M3 working class perfectly matched the operational requirements of the Nigeria plant. The remote-control design and IP54 protection class were especially important because the production line operates in a dusty, high-temperature environment typical of many regions in Nigeria.

During the technical discussion, the engineering team in Nigeria emphasized the need for consistent performance during continuous lifting cycles. The 5 ton electric hoist’s 7.5 kW lifting motor, 1400 r/min rotation speed, and F-grade insulation provided confidence that the 5 ton electric wire rope hoist could operate safely and efficiently in their workflow.

Once the final specifications were approved, the order for the 5 ton electric wire rope hoist was confirmed with a 50% T/T deposit, and production proceeded quickly. The 5 ton electric hoist was packed in a reinforced wooden box, ensuring safe long-distance transport to Nigeria. Delivery was completed within 7 working days, followed by shipment arranged through the customer’s preferred freight forwarder.

Upon arrival in Nigeria, the installation team reported that the equipment fit the plant layout perfectly and that the electric wire rope hoist delivered smooth, stable lifting performance from the first test run. With the new 5 ton electric wire rope hoist in operation, the factory significantly improved workflow efficiency, reducing manual handling time and increasing daily output.

Main Parts and Description of 5 Ton 18 M Electric Wire Rope Hoist For Sale to Nigeria:

Motor		Special designed Squirrel-cage motor for the electric hoist. Maintenance free. Insulation grade F. Protection class IP54. Electromagnetic brake system
Electric trolley		Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details.
Hoist lifting reducer		Totally enclosed type with Splash Lubrication, gear box shell pressure casting
Winding drum		Self-produced. Drums made of high quality seamless steel processed by CNC machine.
Wire rope		Rope structure 6×37+FC, fiber core, Diameter 13 mm.
Hook		With safety latch
Rope guide		Installed on the winding drum to guide the wire rope, nodular cast iron
Lifting Limit switch		For lifting protection, prevent the hook from knocking the hoist
Overload limit		For lifting protection, monitor the hoist situation
Remote Control		Radio frequency control. Safe and reliable

5 Ton Electric Wire Rope Hoist: Key Components and How They Work

• Electric Motor: The motor is the power source of the 5 ton electric wire rope hoist, converting electrical energy into mechanical force. It drives both lifting and traveling functions, providing stable torque and consistent performance even under continuous load.
• Wire Rope & Drum: The wire rope winds around a grooved drum. When the motor runs, the drum rotates to raise or lower the load. In a 5 ton electric wire rope hoist, the wire rope is made from high-strength steel strands for durability, stability, and resistance to wear.
• Gearbox: The gearbox reduces motor speed while increasing lifting torque. This ensures the 5 ton electric wire rope hoist can lift heavy loads smoothly and safely without mechanical vibration.
• Hook Block: The hook block supports the load and includes safety latches to prevent accidental disengagement. Its swivel design allows controlled rotation when positioning materials.
• Braking System: The electromagnetic brake activates instantly when power is cut, ensuring the 5 ton electric wire rope hoist holds the load securely. This is one of the most important safety mechanisms.
• Control System: The hoist is operated through a pendant or remote control, enabling precise lifting, lowering, and horizontal movements. The system enhances the accuracy and safety of a 5 ton electric wire rope hoist during daily operations.

 Safety First: Essential Built-In Safety Features of 5 Ton Electric Wire Rope Hoist

• Overload Protection: The system automatically stops lifting when weight exceeds the rated capacity. This prevents structural damage and protects the 5 ton electric wire rope hoist from excessive stress.
• Electromagnetic Brake System: The brake engages instantly when power is cut, ensuring the load remains safely suspended. This is essential for preventing uncontrolled descent of a 5 ton electric wire rope hoist.
• Emergency Stop Function: Operators can immediately halt all motions during abnormal situations. This quick reaction capability enhances the overall safety of the 5 ton electric wire rope hoist.
• Upper & Lower Limit Switches: These switches stop the hook from over-travel, protecting the wire rope, drum, and internal components of the 5 ton electric wire rope hoist.
• Thermal Motor Protection: When overheating is detected, the motor shuts down to prevent burnout. This keeps the 5 ton electric wire rope hoist running safely during long shifts.
• Smooth Start & Anti-Swing Control: Soft-start technology reduces load swing, making positioning easier and safer. It also improves the handling precision of the 5 ton electric wire rope hoist.

The Importance of Motor Type and Lifting Speed in 5 ton electric wire rope hoist:

The motor type and lifting speed play a critical role in determining the performance and efficiency of a 5 ton electric wire rope hoist. Since industrial operations demand stable, reliable, and predictable lifting, choosing the right motor ensures that a 5 ton electric wire rope hoist can handle continuous workloads without overheating or energy waste.

A high-quality electric motor provides strong starting torque, smooth operation, and consistent speed control. For a 5 ton electric wire rope hoist, motors with high insulation grade and good heat dissipation are essential to maintain long-term durability. In applications requiring precise load handling—such as machining workshops or assembly lines—a variable-frequency motor is often preferred because it allows the 5 ton electric wire rope hoist to accelerate and decelerate gradually, reducing load swing and improving positioning accuracy.

Lifting speed is equally important. Faster speeds increase productivity, especially in warehouses and production areas where materials must be moved frequently. However, the speed of a 5 ton electric wire rope hoist must match the safety requirements of the working environment. Too high a speed can cause instability, while too low a speed may slow down operations.

Daily Inspections for Your 5 Ton Electric Wire Rope Hoist:

• Visual Check of Wire Rope: Inspect the rope for broken strands, corrosion, or uneven winding. Any visible damage can affect the lifting safety of the 5 ton electric wire rope hoist.
• Hook and Safety Latch Condition: Confirm that the hook rotates freely and that the latch closes securely. This prevents accidental load release when using the 5 ton electric wire rope hoist.
• Brake Function Test: Perform a light lift to verify that the electromagnetic brake holds the load firmly. A responsive brake is critical for the 5 ton electric wire rope hoist during daily operations.
• Limit Switch Verification: Raise and lower the hook to ensure upper and lower limits activate correctly. Faulty limit switches can cause damage inside the 5 ton electric wire rope hoist.
• Motor and Control Panel Inspection: Check for abnormal sounds, overheating, or loose wiring. Stable power delivery keeps the 5 ton electric wire rope hoist working efficiently.
• Lubrication and Moving Parts: Verify that gears, drums, and bearings are adequately lubricated to reduce friction and extend the lifespan of the 5 ton electric wire rope hoist.
• Load Path Clearance: Ensure the surrounding area is free of obstacles before lifting. A clear path supports smooth operation of the 5 ton electric wire rope hoist.

By following this checklist, operators maintain safety, reduce downtime, and extend the working life of a 5 ton electric wire rope hoist.

Certification of Electric Wire Rope Hoist:

Processing of Electric Wire Rope Hoists:

Packaging and Delivery of Electric Wire Rope Hoist:

The Beginner's Guide to Specifying a 5 Ton Electric Wire Rope Hoist:

Specifying the right electric wire rope hoist is crucial for safe, efficient, and long-lasting lifting operations. Beginners often overlook key factors that directly affect performance. This guide highlights essential points to consider when selecting a 5 ton electric hoist.

1. Lifting Capacity: Ensure the hoist can handle loads up to 5 tons. Choosing a properly rated 5 ton electric wire rope hoist prevents overloading and extends equipment life.
2. Lifting Height: Determine the maximum lift required in your workspace. The height specification ensures the 5 ton electric wire rope hoist can reach all necessary positions safely.
3. Motor Type: Select a motor suitable for your operation. Motors with variable frequency drive allow the 5 ton electric wire rope hoist to lift smoothly and reduce load swing.
4. Lifting Speed: Consider the speed required for your application. A faster 5 ton electric wire rope hoist increases productivity, while slower speeds improve precision during delicate handling.
5. Control Options: Decide between pendant, remote, or cabin controls. Proper control ensures the 5 ton electric wire rope hoist is safe and easy to operate.
6. Safety Features: Check for overload protection, limit switches, and electromagnetic brakes. These features guarantee the 5 ton electric wire rope hoist operates securely under all conditions.
7. Installation and Track Compatibility: Verify that your building structure supports the hoist’s weight and span. Correct installation maximizes the efficiency of the 5 ton electric wire rope hoist.

Application of 5 ton electric wire rope hoist in Nigeria:

The 5 ton electric wire rope hoist plays a vital role in Nigeria, where rapid industrial expansion and increasing investment in manufacturing, oil services, construction, and logistics demand reliable lifting equipment. As Nigeria continues developing its industrial zones in Lagos, Ogun, Rivers, and Abuja, the 5 ton electric hoist has become a practical solution for factories and workshops seeking stable lifting capacity, low maintenance, and improved operational efficiency.

In Nigeria’s construction sector, a 5 ton electric wire rope hoist is widely used for lifting steel materials, concrete components, mechanical parts, and prefabricated structures. The hoist’s smooth operation and high safety level align well with Nigeria’s growing need for modern infrastructure, including roads, bridges, industrial buildings, and warehousing facilities.

Nigeria’s oil and gas service industry also relies on the 5 ton electric wire rope hoist for equipment repair, pipeline fabrication, and workshop handling tasks. Because many Nigerian companies aim to reduce downtime and improve productivity, the 5 ton electric hoist offers strong durability and dependable lifting performance in demanding environments.

With Nigeria promoting local manufacturing and expanding logistics networks, businesses increasingly choose the 5 ton electric wire rope hoist to enhance workflow efficiency.
