2 Ton-4 M H-3.5 M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to South Africa

Technical Specifications of 2 Ton Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to South Africa:

Item	Manual Portable Gantry Crane
Capacity	ton	2
Lifting height	m	3.5
Span		4
Power Supply	V/HZ/Fase	N/A
Control	/	manual
Lifting speed	m/min	manual
Manual hoist moving speed		manual
Manual crane moving speed		manual
Lifting power	kw	manual
Manual hoist moving power		manual
Power of manual crane movement		manual
Chain diameter	mm	7.1
Working class	/	A3
Protection class	/	IP54
Insulation grade	/	F
Ambient temperature	/	-20℃ ~ +40℃
Weight	kg	900
Brand	/	Yuantai
Country of Origin	/	China

2 Ton-3M H-3M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to South Africa:

A medium-sized metal fabrication workshop in South Africa began searching for a flexible lifting solution to improve efficiency in their daily operations. The client mainly handled steel frames, small machinery components, and prefabricated structures, and needed equipment that could move freely between different production bays. They selected a 2 ton portable gantry crane with 4 m span and 3.5 m lifting height equipped with a manual chain hoist.

The purchasing manager in South Africa explained that their workflow required frequent relocation of lifting equipment. Materials arrive at the warehouse area, are transferred to the cutting station, then moved again to the assembly zone. The mobility of the 2 ton portable gantry crane allowed workers to push the crane manually across the floor, aligning perfectly with each workstation without relying on permanent rails.

During project evaluation, the client appreciated the simple manual control system, A3 working class, and robust structure suitable for workshop conditions in South Africa. The IP54 protection and reliable performance under temperatures from -20℃ to +40℃ also matched the diverse operating environments commonly found in South Africa.

After delivery to South Africa, installation was completed within one day. Operators quickly adapted to the manual hoist operation, reporting improved safety and smoother material handling. The 2 ton portable gantry crane soon became central to their daily workflow, reducing downtime between processes.

Several weeks later, the client shared positive feedback from South Africa, noting that the 2 ton portable gantry crane significantly increased flexibility and reduced labor intensity.

Details Conficuraciones of 2 Ton Mobile Portable Gantry Crane Manual Adjustable with Manual Hoist for Sale to South Africa:

Structure		Convenient transportation and simple installation. Anti-rust
Wheels		Manual wheels for stronger support and smooth movement.
Hoist		Manual chain hoist 2 ton manual hoist Manual lifting IP54 protection class
Hook		Hot forged. Safe and durable.
Trolley		Manual alloy frame and wheels have high abrasion resistance.  It is compact and easy to install.
Chain		The chain will adopt the ultra-tractable aluminum alloy chain with imported ultra-heat treatment. It can be safely used in power environments such as rain, sea water and chemicals.

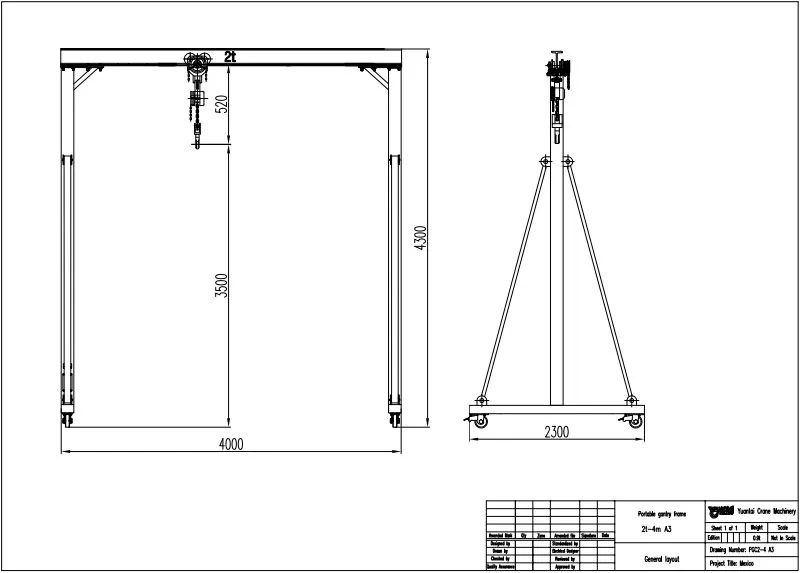

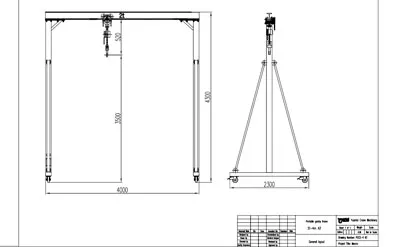

Drawing of 2 Ton Portable Gantry Crane for Sale to South Africa:

Application of 2 Ton Mobile Portable Gantry Crane in South Africa:

1. Economic background: South Africa has a strong base in mining, manufacturing, agriculture, and logistics. Small and medium enterprises often need flexible lifting solutions that balance cost and efficiency.
2. Ideal for SMEs and workshops: The 2 ton portable gantry crane is widely used in South Africa for mechanical workshops, repair centers, and fabrication shops where budgets are controlled but safe lifting is essential.
3. Support for mining and industrial maintenance: In South Africa, mining sites and equipment maintenance teams rely on the 2 ton portable gantry crane for handling motors, pumps, and spare parts without investing in fixed overhead systems.
4. Construction and infrastructure projects: Growing infrastructure development in South Africa increases demand for mobile lifting tools. The 2 ton portable gantry crane is suitable for on-site material handling and light structural assembly.
5. Agriculture and warehousing applications: Farms and warehouses across South Africa use the 2 ton portable gantry crane to lift feed bags, machinery components, and pallets, improving productivity.
6. Cost-effective and flexible choice: For businesses in South Africa, the 2 ton portable gantry crane offers low installation cost, easy relocation, and reliable performance, making it a practical long-term investment.
