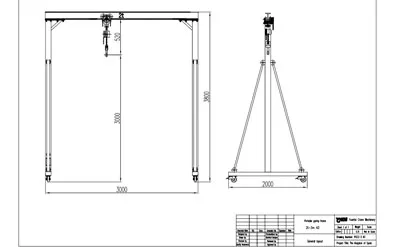

2 Ton-3M H-3M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to Spain

Lifting Capacity: 2 ton
Span: 3 m
Lifting Height: 3 m
Working Class: A3
Note: We can design and manufacture the crane according your requirments and working conditions.

Get Price

Send Email

Technical Specifications of 2 Ton Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to Spain:

2 Ton-3M H-3M Mobile Portable Gantry Crane with Manual Chain Hoist for Sale to Spain:

A small industrial maintenance contractor in Spain contacted us while upgrading its lifting equipment for on-site machinery servicing. The company operates across several regions of Spain, frequently moving between customer workshops, warehouses, and temporary job sites.

After internal evaluation, the customer decided on a 2 ton mobile portable gantry crane with a 3-meter span and 3-meter lifting height. This 2 ton portable gantry crane was ideal for handling gearboxes, motors, and steel components during routine maintenance work.

Project Requirements and Solution

 The selected 2 ton portable gantry crane features a manual chain hoist, manual trolley movement, and manual crane travel, allowing workers to operate the equipment without electrical dependence. With a working class of A3, the 2 ton portable gantry crane is suitable for intermittent lifting tasks typical of service contractors across Spain.

The crane’s 7.1 mm chain diameter provides sufficient strength and durability, ensuring stable lifting under varied working conditions, from indoor workshops to semi-outdoor industrial sites.

Manufacturing, Packaging, and Logistics

Once the order was confirmed, production of the 2 ton mobile portable gantry crane was completed within 20 working days. For export to Spain, the crane was carefully packed in a high-quality plywood crate to prevent damage during LCL sea transport. The total weight of approximately 700 kg allowed for economical shipping, which is an important factor for customers in Spain managing logistics costs.

The shipment was delivered FOB Qingdao, China, and forwarded to a major port in Spain, where the customer handled local customs clearance smoothly.

Installation and Customer Feedback

After arrival in Spain, the customer reported that the 2 ton mobile portable gantry crane was easy to assemble with basic tools. Within one day, the crane was fully operational. During initial use, operators praised the smooth manual lifting and stable frame structure.

Details Conficuraciones of 2 Ton Mobile Portable Gantry Crane Manual Adjustable with Manual Hoist for Sale to Spain:

Structure		Convenient transportation and simple installation. Anti-rust
Wheels		Manual wheels for stronger support and smooth movement.
Hoist		Manual chain hoist 2 ton manual hoist Manual lifting IP54 protection class
Hook		Hot forged. Safe and durable.
Trolley		Manual alloy frame and wheels have high abrasion resistance.  It is compact and easy to install.
Chain		The chain will adopt the ultra-tractable aluminum alloy chain with imported ultra-heat treatment. It can be safely used in power environments such as rain, sea water and chemicals.

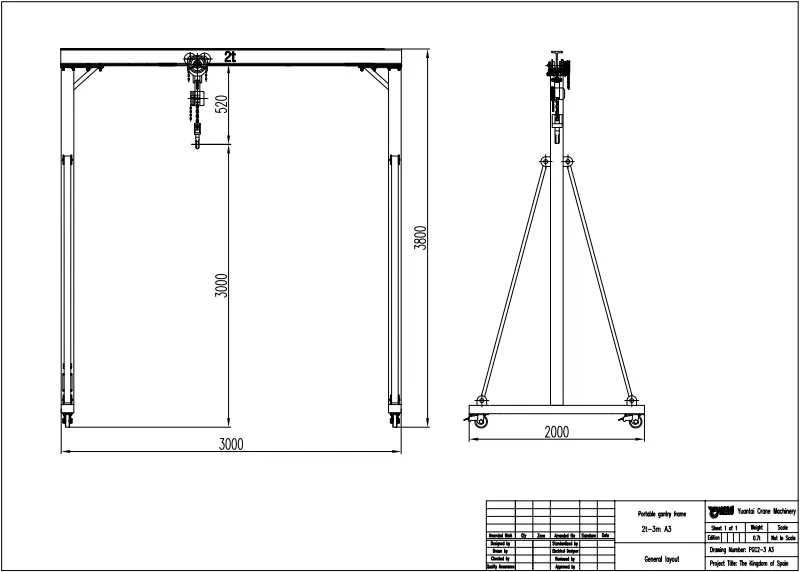

Drawing of 2 Ton Portable Gantry Crane for Sale to Spain:

Understanding Mobile Portable Gantry Crane Capacity: Why 2 Ton Is a Popular Choice for Workshops

• 1. Ideal Load Range for Most Workshops: A 2 ton mobile portable gantry crane is perfectly matched to the real lifting needs of small and medium workshops. Most equipment such as electric motors, gearboxes, machine parts, and steel assemblies fall well below the 2-ton limit.
• 2. Balanced Safety and Cost Efficiency: Compared with higher-capacity systems, a 2 ton portable gantry crane reduces material cost, foundation requirements, and transportation expenses while still offering a strong safety margin.
• 3. Easy Manual Operation with Chain Hoist: The manual chain hoist used on a 2 ton mobile portable gantry crane allows precise load control without electrical power.
• 4. Lightweight Structure and High Mobility: This mobility allows workshops to use one 2 ton portable gantry crane across multiple workstations, improving space utilization.
• 5. Compliance with Typical Workshop Duty Cycles: Most workshops operate on intermittent lifting cycles rather than continuous heavy lifting. A 2 ton portable gantry crane with A3 duty class matches these conditions perfectly, ensuring long service life and stable performance.
• 6. Versatile Applications Across Industries: From equipment maintenance to light fabrication, a 2 ton mobile portable gantry crane adapts to many tasks.

Key Components of a 2 Ton Mobile Portable Gantry Crane: Beam, Legs, Casters, and Hoist Explained

1. Main Beam: The main beam supports the full rated capacity and distributes the load evenly across the frame. A properly designed beam ensures structural stability and minimizes deflection during lifting.
2. Support Legs: The legs of a 2 ton portable gantry crane provide vertical support and overall balance. They are engineered to withstand both static loads and dynamic forces generated during lifting and movement.
3. Casters or Wheels: Casters give a 2 ton mobile portable gantry crane its mobility. Heavy-duty swivel or locking wheels allow operators to reposition the crane easily while maintaining safety.
4. Manual Chain Hoist: The manual chain hoist is the lifting mechanism of a 2 ton portable gantry crane. It provides precise control, reliable braking, and safe lifting without electrical power.
5. Trolley System: The trolley allows the hoist to move horizontally along the beam of a 2 ton mobile portable gantry crane. Smooth trolley movement improves load positioning accuracy and reduces operator effort.
6. Connecting Hardware and Safety Elements: Bolts, pins, and safety locks hold all parts of the portable gantry crane together. These components ensure rigidity, easy assembly, and long-term operational safety.

5 Critical Factors to Consider Before Buying a 2 Ton Mobile Portable Gantry Crane:

1. Actual Lifting Requirements: Before purchasing a 2 ton portable gantry crane, evaluate the real weight of the loads you handle daily. A 2-ton rating is ideal for motors, pumps, molds, and steel components, providing a safe margin without unnecessary oversizing.
2. Span and Lifting Height: The effectiveness of a 2 ton mobile portable gantry crane depends on matching span and lifting height to your workspace. Measure floor width, ceiling clearance, and load dimensions to ensure smooth operation and safe lifting.
3. Manual Chain Hoist Quality: Since lifting performance relies on the hoist, choose a 2 ton mobile portable gantry crane equipped with a reliable manual chain hoist. Smooth braking, durable load chain, and precise control are essential for safe, fatigue-free operation.
4. Mobility and Floor Conditions: Casters play a key role in how a 2 ton portable gantry crane moves. Confirm that wheel type and locking mechanisms are suitable for your floor surface, especially if the crane must be repositioned frequently.
5. Structure, Safety, and Duty Class: Check frame material, connection strength, and working class. A 2 ton portable gantry crane with an A3 duty rating is well suited for intermittent workshop use, offering long service life and stable performance.

Fundamental Safe Practices for Workshops Using a 2 Ton Mobile Portable Gantry Crane:

• Verify Load Weight Before Lifting: Always confirm the actual weight of the load before using a 2 ton mobile portable gantry crane. The load, including rigging and accessories, must remain within the rated capacity to prevent structural overload.
• Inspect the Crane and Hoist Daily: Before each shift, check the frame, bolts, casters, and chain condition. A mobile portable gantry crane should never be operated if the chain shows wear, deformation, or improper lubrication.
• Position the Crane on a Level Surface: Place the portable gantry crane on a flat, solid floor. Lock the casters before lifting to prevent unintended movement during hoisting operations.
• Lift Smoothly and Avoid Sudden Movements: Operate the manual chain hoist steadily. Smooth lifting reduces dynamic forces and ensures safe load control when using a 2 ton portable gantry crane.
• Keep the Load Centered: Always center the load directly beneath the beam. Side pulling or angled lifting with a 2 ton portable gantry crane increases stress on the structure and trolley system.
• Maintain a Safe Working Zone: No personnel should stand under a suspended load. Establish clear safety zones around the 2 ton portable gantry crane during operation.
• Follow Duty Cycle Limits: A 2 ton mobile portable gantry crane is designed for intermittent lifting. Allow rest periods between lifts to prevent excessive wear and ensure long-term safety.

Application of 2 Ton Mobile Portable Gantry Crane in Spain:

In recent years, Spain has seen steady growth in light manufacturing, equipment maintenance, logistics services, and small construction projects. Many companies, especially SMEs, operate in rented facilities or temporary job sites where installing fixed lifting systems is not economical. Under this economic environment, the 2 ton portable gantry crane has become a practical and widely adopted lifting solution.

A 2 ton portable gantry crane is commonly used in Spain for machinery maintenance, workshop assembly, warehouse material handling, and equipment installation. Its mobility allows businesses to move lifting equipment between different work areas or project sites, maximizing asset utilization while controlling costs.

Because many industrial sites in Spain face power limitations or aim to reduce energy expenses, the 2 ton mobile portable gantry crane with manual operation is highly favored. It enables safe lifting of motors, pumps, molds, and steel components without relying on electrical infrastructure.

Additionally, the compact structure of a 2 ton portable gantry crane fits well in workshops and warehouses across Spain, where space efficiency is critical. Its ability to operate both indoors and semi-outdoors makes it suitable for varied climate and diverse industrial sectors.
